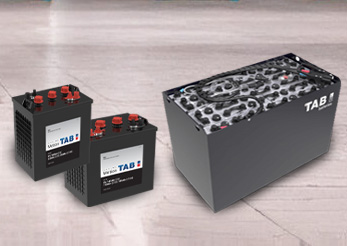

MOTIVE BATTERIES

At GEC, we specialize in providing robust and reliable industrial batteries designed to power a wide range of heavy-duty applications. Our industrial batteries are built to withstand harsh environments and demanding workloads, ensuring consistent performance and longevity.

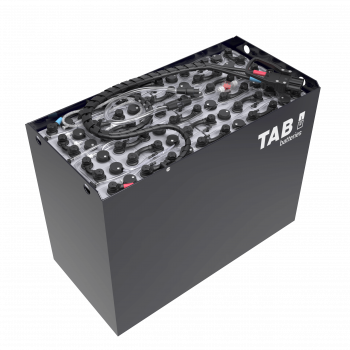

TAB DIN

TAB BS

TAB DIN

TAB TRACTION BATTERIES

One of the very important production part of your company is internal logistics. We are introducing our TAB motive power batteries which have been satisfying the most demanding users for more than 55 years.

We assemble individual cells (2V) into batteries with different voltages, capacities and dimensions which suite to all types of electrical machines. Wide production program covers the range of DIN (PzS) cells according to EN60254 – 1,2 and IEC 254 – 1,2.

Batteries are known by their:

Battery application:

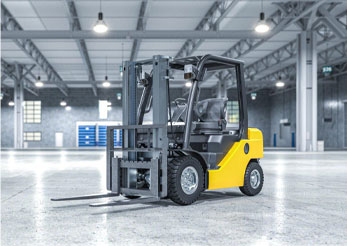

Forklifts.
Mine locomotives.
ETC

TAB TRACTION DIN STANDARD

Cell	Capacity	Width	Weight	Weight
50 Ah [h1=282, h2=305 mm \| length=198 mm]
Type	5h	mm	with acid (kg)	dry (kg)
2 PzS 100 L	100	47	6.8	5.7
3 PzS 150 L	150	65	9.6	7.7
4 PzS 200 L	200	83	12.4	9.9
5 PzS 250 L	250	101	15.3	12.2
6 PzS 300 L	300	119	18.2	14.5
7 PzS 350 L	350	137	21.1	16.7
8 PzS 400 L	400	155	24.0	19.0
9 PzS 450 L	450	173	26.9	21.3
10 PzS 500 L	500	191	29.8	23.6
12 PzS 600 L*	600	227	35.9	28.4
60 Ah [h1=340, h2=363 mm \| length=198 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzS 120 L	120	47	8.5	6.5
3 PzS 180 L	180	65	11.9	9.2
4 PzS 240 L	240	83	15.4	11.9
5 PzS 300 L	300	101	18.9	14.6
6 PzS 360 L	360	119	22.4	17.2
7 PzS 420 L	420	137	25.9	19.9
8 PzS 480 L	480	155	29.4	22.6
9 PzS 540 L	540	173	32.9	25.2
10 PzS 600 L	600	191	36.4	27.9
12 PzS 720 L*	720	227	43.7	33.6
80 Ah [h1=402, h2=425 mm \| length=198 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzS 160 L	160	47	10.2	8.1
3 PzS 240 L	240	65	14.5	11.2
4 PzS 320 L	320	83	18.7	14.6
5 PzS 400 L	400	101	22.9	17.9
6 PzS 480 L	480	119	27.1	21.3
7 PzS 560 L	560	137	31.3	24.7
8 PzS 640 L	640	155	35.5	28.0
9 PzS 720 L	720	173	39.7	31.4
10 PzS 800 L	800	191	43.9	34.7
12 PzS 960 L*	960	227	52.6	41.8
90 Ah [h1=472, h2=495 mm \| length=198 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzS 180 L	180	47	11.6	9.1
3 PzS 270 L	270	65	16.6	12.8
4 PzS 360 L	360	83	21.4	16.6
5 PzS 450 L	450	101	26.2	20.5
6 PzS 540 L	540	119	31.0	24.4
7 PzS 630 L	630	137	35.8	28.2
8 PzS 720 L	720	155	40.6	32.1
9 PzS 810 L	810	173	45.4	35.9
10 PzS 900 L	900	191	50.2	39.8
12 PzS 1080 L*	1080	227	60.1	47.8
105 Ah [h1=515, h2=538 mm \| length=198 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzS 210 L	210	47	13.3	10.3
3 PzS 315 L	315	65	18.3	14.4
4 PzS 420 L	420	83	23.7	18.6
5 PzS 525 L	525	101	29.1	22.9
6 PzS 630 L	630	119	34.5	27.1
7 PzS 735 L	735	137	39.9	31.4
8 PzS 840 L	840	155	45.3	35.6
9 PzS 945 L	945	173	50.7	39.9
10 PzS 1050 L	1050	191	56.4	44.5
12 PzS 1260 L*	1260	227	67.2	53.0
115 Ah [h1=545, h2=568 mm \| length=198 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzS 230 L	230	47	14.0	10.8
3 PzS 345 L	345	65	19.8	15.3
4 PzS 460 L	460	83	25.6	19.9
5 PzS 575 L	575	101	31.4	24.8
6 PzS 690 L	690	119	37.2	29.6
7 PzS 805 L	805	137	43.0	34.5
8 PzS 920 L	920	155	48.8	39.3
9 PzS 1035 L	1035	173	54.9	44.5
10 PzS 1150 L	1150	191	60.7	49.3
12 PzS 1380 L*	1380	227	72.3	59.0
125 Ah [h1=570, h2=593 mm \| length=198 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzS 250 L	250	47	14.7	11.6
3 PzS 375 L	375	65	20.7	16.2
4 PzS 500 L	500	83	26.9	21.1
5 PzS 625 L	625	101	33.1	26.0
6 PzS 750 L	750	119	39.3	30.9
7 PzS 875 L	875	137	45.5	35.8
8 PzS 1000 L	1000	155	51.7	40.7
9 PzS 1125 L	1125	173	58.2	45.9
10 PzS 1250 L	1250	191	64.4	50.8
12 PzS 1500 L*	1500	227	76.8	60.6
140 Ah [h1=686, h2=709 mm \| length=198 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzS 280 L	280	47	20.6	14.4
3 PzS 420 L	420	65	25.3	19.4
4 PzS 560 L	560	83	32.2	25.1
5 PzS 700 L	700	101	39.5	30.9
6 PzS 840 L	840	119	46.7	36.6
7 PzS 980 L	980	137	54.0	42.3
8 PzS 1120 L	1120	155	61.2	48.0
9 PzS 1260 L	1260	173	68.8	54.1
10 PzS 1400 L*	1400	191	76.0	59.8
12 PzS 1680 L*	1680	227	90.5	71.3
155 Ah [h1=720, h2=743 mm \| length=198 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzS 310 L	310	47	21.5	14.9
3 PzS 465 L	465	65	26.1	20.6
4 PzS 620 L	620	83	33.5	26.7
5 PzS 775 L	775	101	41.1	32.9
6 PzS 930 L	930	119	48.9	39.0
7 PzS 1085 L	1085	137	56.7	45.1
8 PzS 1240 L	1240	155	64.5	51.3
9 PzS 1395 L	1395	173	72.8	57.8
10 PzS 1550 L*	1550	191	80.6	64.0
12 PzS 1860 L*	1860	227	96.2	76.2

Electrolyte density at 30 °C: 1,29 ± 0,01 kg/l. Weight tolerance is ± 5 %. Cells from 7 to 10 PzS types are available with 2 and 4 poles. For 4 poles, please specify in your order. 10 PzS 1400 L, 10 PzS 1550 L and all 12 PzS cells are available with 4 poles only.

Cells available only with 4 poles are signed with *.

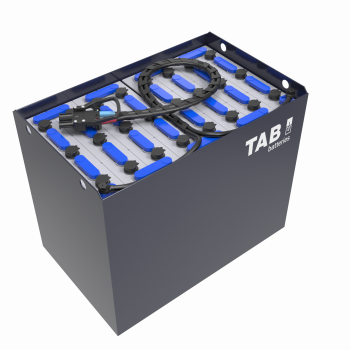

TAB BS

TAB TRACTION BATTERIES

Batteries are known by their:

Battery application:

Forklifts.
Mine locomotives.
etc.

TAB TRACTION BS STANDARD

Cell	Capacity	Width	Weight	Weight
23 Ah [h1=216, h2=240 mm \| length=157 mm]
Type	5h	mm	with acid (kg)	dry (kg)
2 PzB 46	46	45	3.7	3.0
3 PzB 69	69	61	5.4	4.2
4 PzB 92	92	77	6.9	5.4
5 PzB 115	115	93	8.4	6.6
6 PzB 138	138	109	10.0	7.8
7 PzB 161	161	125	11.6	9.0
8 PzB 184	184	141	13.2	10.2
9 PzB 207*	207	157	15.3	11.9
10 PzB 230*	230	173	16.9	13.1
11 PzB 253*	253	189	18.4	14.3
32 Ah [h1=260, h2=284 mm \| length=157 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzB 64	64	45	5.1	4.0
3 PzB 96	96	61	7.1	5.6
4 PzB 128	128	77	9.2	7.2
5 PzB 160	160	93	11.3	8.8
6 PzB 192	192	109	13.2	10.3
7 PzB 224	224	125	15.0	11.7
8 PzB 256	256	141	16.8	13.1
9 PzB 288*	288	157	19.1	14.9
10 PzB 320*	320	173	20.9	16.3
11 PzB 352*	352	189	22.7	17.7
42 Ah [h1=326, h2=350 mm \| length=157 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzB 84	84	45	6.9	5.4
3 PzB 126	126	61	9.4	7.3
4 PzB 168	168	77	11.9	9.3
5 PzB 210	210	93	14.5	11.3
6 PzB 252	252	109	17.3	13.5
7 PzB 294	294	125	20.0	15.6
8 PzB 336	336	141	22.3	17.6
9 PzB 378*	378	157	25.2	19.9
10 PzB 420*	420	173	27.6	21.8
11 PzB 462*	462	189	30.0	23.7
55 Ah [h1=399, h2=423 mm \| length=157 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzB 110	110	45	7.6	6.1
3 PzB 165	165	61	10.5	8.5
4 PzB 220	220	77	13.5	11.0
5 PzB 275	275	93	16.5	13.5
6 PzB 330	330	109	19.6	15.9
7 PzB 385	385	125	22.6	18.4
8 PzB 440	440	141	25.6	20.8
9 PzB 495*	495	157	29.1	23.8
10 PzB 550*	550	173	32.1	26.3
11 PzB 605*	605	189	35.2	28.7
65 Ah [h1=453, h2=477 mm \| length=157 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzB 130	130	45	8.2	6.8
3 PzB 195	195	61	12.0	10.1
4 PzB 260	260	77	15.5	13.0
5 PzB 325	325	93	19.0	16.0
6 PzB 390	390	109	22.6	18.9
7 PzB 455	455	125	26.1	21.8
8 PzB 520	520	141	29.6	24.5
9 PzB 585*	585	157	33.6	27.9
10 PzB 650*	650	173	37.2	30.6
11 PzB 715*	715	189	40.7	33.3
75 Ah [h1=513, h2=537 mm \| length=157 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzB 150	150	45	10.0	7.5
3 PzB 225	225	61	13.9	10.8
4 PzB 300	300	77	17.8	14.1
5 PzB 375	375	93	21.6	17.5
6 PzB 450	450	109	25.6	20.9
7 PzB 525	525	125	29.6	24.1
8 PzB 600	600	141	33.5	27.4
9 PzB 675*	675	157	38.2	31.1
10 PzB 750*	750	173	42.3	34.2
11 PzB 825*	825	189	46.4	37.3
86 Ah [h1=567, h2=591 mm \| length=157 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzB 172	172	45	10.7	8.3
3 PzB 258	258	61	15.0	11.8
4 PzB 344	344	77	19.3	15.2
5 PzB 430	430	93	23.7	18.6
6 PzB 516	516	109	28.1	22.0
7 PzB 602	602	125	32.6	25.4
8 PzB 688	688	141	37.1	28.8
9 PzB 774*	774	157	42.3	32.9
10 PzB 860*	860	173	46.9	36.3
11 PzB 946*	946	189	51.4	39.7
100 Ah [h1=604, h2=628 mm \| length=157 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzB 200	200	45	11.8	9.4
3 PzB 300	300	61	16.6	13.5
4 PzB 400	400	77	21.5	17.5
5 PzB 500	500	93	26.4	21.6
6 PzB 600	600	109	31.5	25.6
7 PzB 700	700	125	36.4	29.7
8 PzB 800	800	141	41.4	33.7
9 PzB 900*	900	157	47.1	38.6
10 PzB 1000*	1000	173	52.0	42.7
11 PzB 1100*	1100	189	56.9	46.7
108 Ah [h1=688, h2=712 mm \| length=157 mm]
Cell	Capacity	Width	Weight	Weight
Type	5h	mm	with acid (kg)	dry (kg)
2 PzB 216	216	45	13.5	9.9
3 PzB 324	324	61	18.9	14.3
4 PzB 432	432	77	24.3	18.7
5 PzB 540	540	93	29.7	23.2
6 PzB 648	648	109	35.1	27.6
7 PzB 756	756	125	40.5	32.1
8 PzB 864	864	141	45.9	36.5
9 PzB 972*	972	157	52.0	41.6
10 PzB 1080*	1080	173	57.4	46.0
11 PzB 1188*	1188	189	62.8	50.4

Electrolyte density at 30 °C: 1,29 ± 0,01 kg/l. Weight tolerance is ± 5 %. Cells from 9 to 11 PzB types are available with 4 poles only. Cells available only with 4 poles are marked with *.
